Can you notch a joist

A: Floor joists occasionally need to be notched or drilled during construction, but you should take pre cautions not to weaken the structural strength of the framing member. … You can cut a notch at the end of the joist to 1/4 of the joist’s depth (maximum).

Do noggins strengthen joists?

Noggins help to straighten out wall studs and floor joists and they are also used to provide a strong fixing for something that will be later fixed to the structure.

Can you sister joists with plywood?

Sistering joists helps prevent floors from bouncing as you walk across them. The technique also helps shore up damaged or undersized joists. Either framing lumber or strips of 3/4-inch plywood may be used for the sister joist.

Can you join two joists together?

or Joining Joists Sistering joists is commonly used when adding onto an existing deck or repairing a deck. In these cases, the overlapped joists help tie the framing together by combining the rigid members over a beam. The longer the overlap distance, the stronger the connection.

How much of a joist can be notched?

Should be no deeper than 0.125 times the depth of the joists. Should be no closer to the support than 0.07 times the span and no further away than 0.25 times the span.

Can you notch bottom of joist?

For the engineered I-Joists shown in Fig 1 some of the limitations are: Do not notch or drill holes through the top or bottom flange. … Typically, most manufacturers have little perforated knockout holes that can be punched out without the use of a drill.

Does notching a beam weaken it?

Improperly sized or placed holes and notches weaken the joist, make it bouncy and saggy, and provide an easy place for it to crack and fail.

How do you reinforce floor joists?

The best way to strengthen floor joists from underneath is to make a supporting mid-span beam or wall beneath the wobbling joists. Using jack posts or 6×6 posts and 2×10 or 2×8 beams perpendicular to the joists will solve any wobble and ensure your joists never move again.

Does Sistering floor joists work?

Sistering joists means beefing them up with additional material. Doing so strengthens weak joists and can help straighten sagging joists. Framing lumber is the typical choice for sistering material, but engineered lumber products actually add more stiffness than dimensional lumber.

Do floor joists need cross bracing?

If your floor seems bouncy or saggy, you may need to consider cross bracing your floor joists. Floor joist bracing is often necessary in older homes where the existing joists may have worn out over time.

Article first time published on

How do I strengthen my timber joists?

There are many common problems which can be solved by repairing and strengthening timber beams and joists using a simple technique involving cutting a slot, or slots, along the length to within about 30-40mm of the base and bonding in a High Tensile Reinforcing bar with Structural Epoxy Pouring Grout.

Can you sister a rotted joist?

Sistering the Joists To repair floor joists, the damaged joist is sistered together with a new piece of wood. Usually, the new piece of lumber spans the length of the old one. … This is usually done by “sandwiching” the old joist in the middle of the two new ones. Doing this gives additional support to the joist.

What is code for Sistering floor joists?

If a crack or sag is isolated to one area, the sister joist should extend at least 3 ft. on both sides of the problem area. But it’s usually best to run the sister joist over the entire span. When the sagging joists are level, apply a generous bead of construction adhesive to the existing joist.

How do you scab a joist?

Scabbing involves taking a piece of wood and permanently affixing it on the side of the joist over the problem area. Scabs can be attached on one or both sides of the joist, the latter option being preferable for greater strength and durability. Scabs can be attached with glue and screws to create a very strong bond.

What regulation covers the notching and drilling of joists?

Electrical installers carrying out work in dwellings and other small buildings of traditional construction often need to notch or drill holes in joists for the passage of cables and/or their enclosures. However, as required by Regulation 522.8.

Can you put pipes through joists?

The maximum allowable diameter of a hole in any solid-lumber joist is one-third of the joist’s depth. Notches can’t be deeper than one-sixth of the joist depth. … Although notches aren’t allowed in the center third of a joist’s length, you can drill holes anywhere along the length of the floor joist in that 5 1⁄4-in.

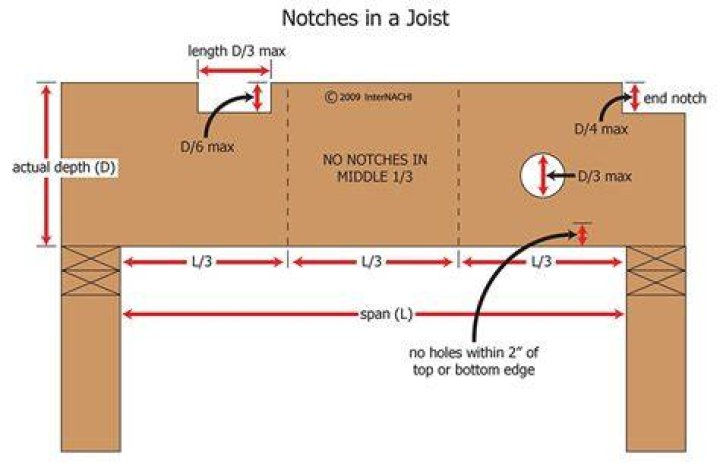

What is the maximum notch typically allowed in a beam?

Notches in solid lumber joists, rafters and beams shall not exceed one-sixth of the depth of the member, shall not be longer than one-third of the depth of the member and shall not be located in the middle one-third of the span. Notches at the ends of the member shall not exceed one-fourth the depth of the member.

Where do you notch joists?

• Notches should only be made in the top edge of the joist.
• Notches should be no deeper than 0.125 times the depth of the joist.
• Notches should be no closer to the structure supporting them than 0.07 times the span of the joist.
• The notches should be no further away than 0.25 (¼) times the span.

Can you sister joists with 2x4?

Nailing two 2x4s together will work to span about three joists, unless the sag is under a weight-bearing wall. … But it’s usually best to run the sister joist over the entire span. When the sagging joists are level, apply a generous bead of construction adhesive to the existing joist.

Can you partially sister a joist?

If space is limited and you need to fix a sagging or damaged joist, you can partially sister a joist, ensuring you get at least 3′ from the damaged area on either end.

How do I damage my sister joists?

Sister Joist Correcting a problem joist is an easy repair and is usually accomplished by fastening a new joist next to a damaged floor joist, doubling the thickness of the framing member. This is referred to as “sistering.” The plan was to sister a new joist next to the old one.

How do you stiffen an I joist floor?

Fix bouncy floors by adding bridging, adding a layer of plywood or adding a wall or beam. We’ll show you three ways to stiffen up your bouncy floor—by adding bridging, installing plywood along the joists and adding a wall or beam under the floor. Any one of the three can solve your problem, depending on your situation.

How do you fix a sagging floor joist?

The best way to fix sagging floor joists is by installing new support structures such as jacks. You should place each jack appropriately while minding the bearing weight and the strategic location of the joist.

Can you screw joist hangers?

Outdoors use 16d double-dipped galvanized nails (or stainless steel when called for) for installing hangers. … The manufacturers agree: Never use galvanized deck screws or drywall screws to install joist hangers. Those screws don’t have the shank size and toughness to support joist loads.

How much weight will a joist hanger support?

Joist SizeMin Capacity lbs2×64002×85002×106002×12700
