What is a D+ battery

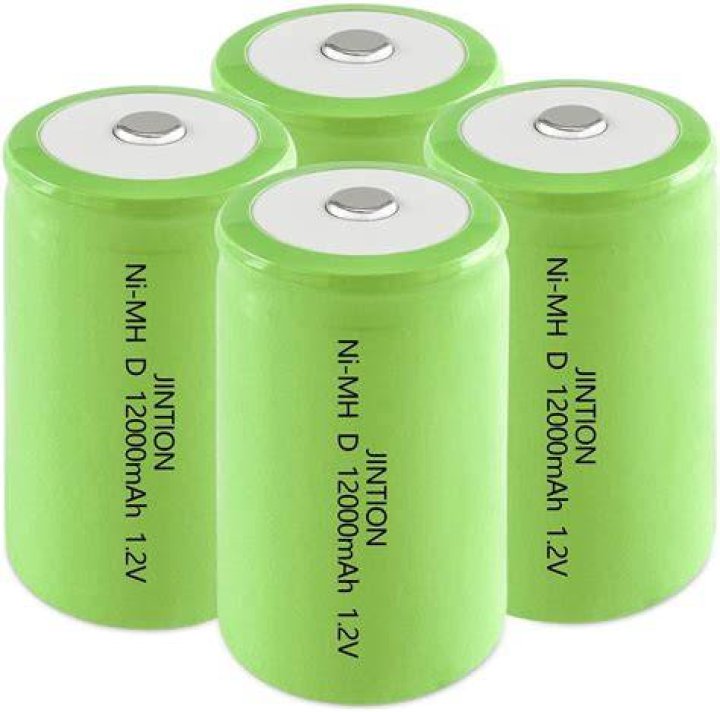

A D battery (D cell or IEC R20) is a standardized size of a dry cell. … D cells are typically used in high current drain applications, such as in large flashlights, radio receivers, and transmitters, and other devices that require an extended running time. A D cell may be either rechargeable or non-rechargeable.
How many cells are in a battery?
A cell refers to a single anode and cathode separated by electrolyte used to produce a voltage and current. A battery can be made up of one or more cells. A single AA battery, for example, is one cell. Car batteries contain six cells at 2.1 V each.
How many cells are in a button battery?
Number codeNominal diameter (mm)Tolerance (mm)2424.5±0.504411.6±0.20
What size are D cell batteries?
The standard size of D battery is: Diameter: 33.2 mm/1.3 inches. Length: 61.5 mm/2.42 inches.
How many amps is ad battery?
A standard D-size carbon-zinc battery has an Ah (amp-hour) capacity of approximately 4.5 to 8 Ah (4500-8000 mAh). This means that a D battery could supply 6.25 amps of current for about one hour, more or less.
How do I know if my battery is 6 cell or 9 cell?
If the battery is internal, read the system specs to find the information for the battery. If the battery is external/removable, look at the battery. It will usually say on the label. 9 cell batteries are also noticeably larger than 6 or 4 cell batteries.
Why are there no B batteries?
Since then, the ANSI standard for batteries has been revised numerous times as battery technology has evolved. Why it appears there is no B (or A, F, etc.) anymore is simply because those particular battery sizes never really caught on commercially, at least on the consumer end of things.
How many cells are in a 24 volt battery?
To get 24 volts, you would therefore need twelve cells, which you could get by combining two 12 volt car batteries in series or by just buying a 24 volt battery.
How many cells does a 12 volt battery have?
A standard 12-volt, lead-acid battery is made up of six cells connected in series. Each cell produces approximately two volts. The cells are filled with an electrolyte.
How many amp hours is ad cell battery?
Zinc-Carbon D-cells feature a typical capacity of around 6-8 Ah (6000-8000 mAh) with a nominal voltage of 1.5 volts.
Article first time published on
How many volts is ad cell battery?
D Battery Voltage For a quick lesson, it is good to know that AAA, AA, C and D batteries are all the same voltage–1.5 volts. What they differ on is amperage, which means that they contain different total amounts of energy (which is also why they are different sizes).
Is there an A cell battery?
The mid-size A and B batteries simply didn’t have a market and more or less disappeared in the U.S. While you typically won’t see either A or B batteries on American store shelves, they’re still out there in the wild. A batteries were used in early-model laptop battery packs and some hobby battery packs.
Is there a 5V battery?
Depending on technology cell voltage is either 1.2V (NiCd), 1.5V (Alkaline, NīMH), 2V (Lead), or 3V (Lithium). You can get higher voltages by combining multiple cells. AFAIK there are no 5V batteries.
What is in a battery cell?
The average alkaline AAA, AA, C, D, 9-volt or button-cell battery is made of steel and a mix of zinc/manganese/potassium/graphite, with the remaining balance made up of paper and plastic. Being non-toxic materials, all of these battery “ingredients” are conveniently recyclable.
What is capacity of a battery?
“Battery capacity” is a measure (typically in Amp-hr) of the charge stored by the battery, and is determined by the mass of active material contained in the battery. The battery capacity represents the maximum amount of energy that can be extracted from the battery under certain specified conditions.
How many watts is ad cell battery?
Bibliographic EntryResult (w/surrounding text)Standardized ResultDuracell – Our Company”D”Battery -1.5 V & 13 A19.5 W
How many watt hours does ad cell battery have?
D Batteries A specification of 21,000 milliamp hours, or 31.5 watt-hours, gives the D battery more than two and one-half times the capacity of the C battery.
How does ad cell battery work?
The cathode and anode (the positive and negative sides at either end of a traditional battery) are hooked up to an electrical circuit. The chemical reactions in the battery causes a build up of electrons at the anode. This results in an electrical difference between the anode and the cathode.
Do AAAA batteries exist?
AAAA Batteries are small batteries that are cylindrical in shape. Also called LR61 or MN2500 batteries, AAAA batteries are commonly used in electrical devices like LED penlights and Bluetooth headsets to name a few. … The AAAA battery has 1.5 volts of power and dimensions of 42.5mm in long and 8.3mm in diameter.
Do Single A batteries exist?
The most common batteries you will encounter are AA, AAA, C, and D. … According to Mental Floss, they did and do still exist, and they are, in fact, commercially available—just not in the U.S. B batteries, much like single A batteries, just stop being needed.
Why are batteries called AA?
But the most significant difference is size because batteries are called AA & AAA because of their size and dimension. AA doesn’t stand for anything. It is simply an identifier for a battery of given dimensions and nominal voltage. … The Size of both batteries matter as they can only operate on size-specific devices.
How many cells is 11.1 volts?
LiPo Batteries are comprised of 3.7v cells. I.E. a 11.1v battery has three-3.7v cells. The balance connector gives you individual access to each of these cells.
How many cells are in a 12 volt lithium ion battery?
Therefore, to achieve a 12V battery you’ll typically have four cells connected in a series. This will make the nominal voltage of a LiFePO4 12.8V.
How long does a 3 cell battery last?
A three cell 42 Watt-hour battery at 11.1 volts will have at least 3780 mAh of capacity. Thus if it is discharged at a rate of 1C (1 Amp) it will last for approximately 3 hours.
How many cells are in a 12V 7ah battery?
Six in the case of a 12V lead acid battery.
How many cells does a 8 volt battery have?
8 Volt Batteries An 8 volt golf cart battery can be identified by seeing batteries with 4 cell caps on top of the battery indicating 2 volts per cell. Generally speaking, a single 8 volt battery will have moderate amperage capacity.
How many cells does a car battery have?
Each cell is able to produce about 2-volts of energy. In most car batteries you have six cells, and therefore a 12-volt battery. The plates are submerged in sulphuric acid that triggers a reaction between the two plates.
How many cells are in a 48 volt battery?
LiFePO4 / LFP is commonly called “Iron Phosphate”, and it has a nominal voltage of 3.2V per cell. That means that it takes 16 LiFePO4 cells to make a 48V pack, and NCA/NCM only require 13 cells for 48V.
How many cells are in a AA battery?
The AA battery (or double-A battery) is a standard size single cell cylindrical dry battery. The IEC 60086 system calls it size R6, and ANSI C18 calls it size 15.
How many volts is 24 cells?
The peak charging voltage for Gel batteries is 2.3 to 2.36 volts per cell, and for a 24 volt charger this works out to 27.6 to 28.3 volts, which is lower than a wet or AGM type battery needs for a full charge.
How long does a 9V battery last?
Li-ion batteries have a nominal voltage of 3.6V and 3.7V. Rechargeable nine-volt batteries usually come in two options: these are NiMH and Lithium. Lithium batteries double the NiMH capacity. NiMH’s 9V battery capacity last for about four hours with the rechargeable Lithium lasts for 7 to 7.5 hours.
