What is Gprmc in GPS

This log contains time, date, position, track made good and speed data provided by the GPS navigation receiver. RMC and RMB are the recommended minimum navigation data to be provided by a GNSS receiver.

What is Gpgsv in GPS?

The GPGSV log can be used to determine which GPS satellites are currently available to the receiver. Comparing the information from this log to that in the GPGSA log shows if the receiver is tracking all available satellites.

What is Gpgga in GPS?

Meaning. GPGGA. Global positioning system fix data (time, position, fix type data)

How do I read Gprmc?

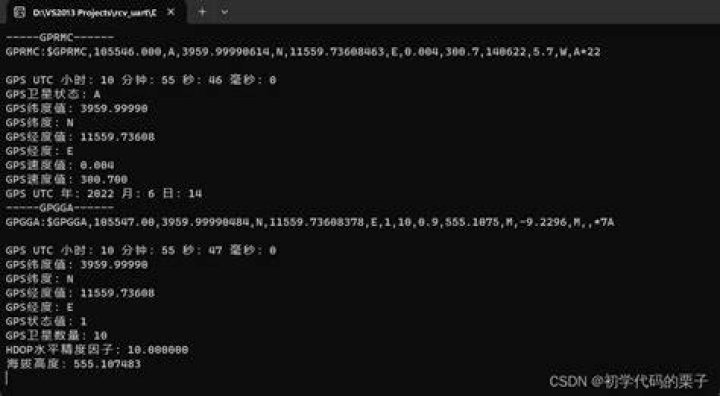

The $GPRMC is simply telling what sentence type is on the line. The next number, represents the Coordinated Universal Time (UTC). It works like this, 194530.000 would be 19:45 and 30.0 seconds in UTC.

What does NMEA stand for?

The National Marine Electronics Association (NMEA) was founded in 1957 to strengthen the relationships between electronic manufacturers.

What is SNR in GPS?

A GPS receiver measures signal strength or signal to noise ratio (SNR). The main part of SNR is the direct signal. … The oscillations seen at the beginning and end of the satellite arc are caused by the interference of the direct and reflected GPS signals.

How do I read NMEA data?

1. Find an application such as AT Command Tester that can parse data from the NMEA port.
2. Connect the GPS device over the interface that is supported by the device.
3. Display NMEA GPS data read from the NMEA port.

What is GGA in NMEA output messages?

The GGA Format provides essential fix data which includes 3D location and accuracy data. There are slight differences between the output of this NMEA Message between ASCII Time Code messages that are output through ATC settings and option cards, and NMEA Out messages designed for navigational purposes.

Which is are GNSS?

GNSS stands for Global Navigation Satellite System, and is an umbrella term that encompasses all global satellite positioning systems. This includes constellations of satellites orbiting over the earth’s surface and continuously transmitting signals that enable users to determine their position.

What are the different GPS coordinate formats?

• Degrees, minutes, and seconds (DMS): 41°24’12.2″N 2°10’26.5″E.
• Degrees and decimal minutes (DMM): 41 24.2028, 2 10.4418.
• Decimal degrees (DD): 41.40338, 2.17403.

Article first time published on

Why do we need DGPS?

DGPS (Differential GPS) is essentially a system to provide positional corrections to GPS signals. DGPS uses a fixed, known position to adjust real time GPS signals to eliminate pseudorange errors. An important point to note is that DGPS corrections improve the accuracy of position data only.

What is a good Hdop value?

This is a unit-less value where smaller is better and 1.00 is considered “perfect,” although I’ve seen values as low as 0.90. When the GPS first comes on, and after the status changes to “A,” you can watch the HDOP begin to fall.

What is the output of GPS?

GPS receiver module gives output in standard (National Marine Electronics Association) NMEA string format. It provides output serially on Tx pin with default 9600 Baud rate. This NMEA string output from GPS receiver contains different parameters separated by commas like longitude, latitude, altitude, time etc.

What is an NMEA device?

NMEA 2000 is a set of marine electronics standards enabling a ‘multi-talk/multi-listen’ network. This means that there can be different manufacturers’ devices on a vessel sending and receiving data simultaneously. This is an open network based on Controller Area Network.

Is NMEA serial?

The NMEA 0183 standard uses a simple ASCII, serial communications protocol that defines how data are transmitted in a “sentence” from one “talker” to multiple “listeners” at a time.

What is NMEA parser?

Connecting to a Microcontroller It is common for the microcontroller to parse the NMEA data. Parsing is simply removing the chunks of data from the NMEA sentence so the microcontroller can do something useful with the data. … The Arduino platform can parse NMEA data easily with the help of the Tiny GPS library.

What are NMEA messages?

NMEA 0183 (or NMEA for short) is a combined electrical and data specification for communication between marine electronic devices such as echo sounder, sonars, anemometer, gyrocompass, autopilot, GPS receivers and many other types of instruments.

How do I get NMEA from GPS?

If your computer is GPS enabled, or you have a GPS receiver connected to your computer that supports NMEA, you can show your current position on the map, track your position and enter waypoints for your position. On the display tab check the box to receive a GPS Signal.

How do you read GPS output?

When outlining the coordinates of a location, the line of latitude is always given first followed by the line of longitude. Therefore, the coordinates of this location will be: 10°N latitude, 70°W longitude. The line of latitude is read as 41 degrees (41°), 24 minutes (24′), 12.2 seconds (12.2”) north.

Is higher SNR better?

SNR directly impacts the performance of a wireless LAN connection. A higher SNR value means that the signal strength is stronger in relation to the noise levels, which allows higher data rates and fewer retransmissions – all of which offers better throughput.

What is dB Hz?

It refers to the ratio of the signal power and noise power in a given bandwidth. … N is the noise power in a given bandwidth in units of dBm or dBW. C/N0, on the other hand, is usually expressed in decibel-Hertz (dB-Hz) and refers to the ratio of the carrier power and the noise power per unit bandwidth.

How is SNR calculated in dB?

SNR Calculation – Simple If your signal and noise measurements are already in dB form, simply subtract the noise figure from the main signal: S – N. … The difference of the numbers is the SNR. For example: you measure a radio signal with a strength of -5 dB and a noise signal of -40 dB. -5 – (-40) = 35 dB.

Is GPS same as GNSS?

GNSS (or Global Navigation Satellite System) is a broad term encompassing different types of satellite-based positioning, navigation and timing (PNT) systems used globally. GPS (or Global Positioning System) is one such type of Global Navigation Satellite System.

What is the difference between GPS and GNSS?

A GNSS, or Global Navigation Satellite System, is a generic name for a group of artificial satellites that send position and timing data from their high orbits. The GPS, or Global Positioning System, is just one of the many different sets of satellites that can provide such data.

What is GNSS in laptop?

Global Navigation Satellite System (GNSS) driver requirements.

What is GGA string?

Introduction: The NMEA GGA sentence is one of the most common sentences used with GPS receivers. It contains information about position, elevation, time, number of satellites used, fix type, and correction age. … The time is always in UTC, regardless of which time zone you’re in.

How is GPS accuracy measured?

User Accuracy. To calculate its position, a GPS device measures its distance (range) from multiple GPS satellites. … User accuracy refers to how close the device’s calculated position is from the truth, expressed as a radius.

What is NMEA data format?

NMEA is an acronym for the National Marine Electronics Association. … Today in the world of GPS, NMEA is a standard data format supported by all GPS manufacturers, much like ASCII is the standard for digital computer characters in the computer world.

What is latitude format?

Latitude and longitude are a pair of numbers (coordinates) used to describe a position on the plane of a geographic coordinate system. The numbers are in decimal degrees format and range from -90 to 90 for latitude and -180 to 180 for longitude. For example, Washington DC has a latitude 38.8951 and longitude -77.0364 .

What is difference between longitude and latitude?

Latitude implies the geographic coordinates that determine the distance of a point, north-south of the equator. Longitude alludes to the geographic coordinate, which identifies the distance of a point, east-west of the Prime Meridian.

What is the most common coordinate system?

Universal transverse Mercator (UTM) is a geographic coordinate system and the most prevalent plane grid system used. UTM divides the earth into 84˚ north latitude to 80˚ south and is numbered into 60 vertical zones (each 6˚ latitude wide).
